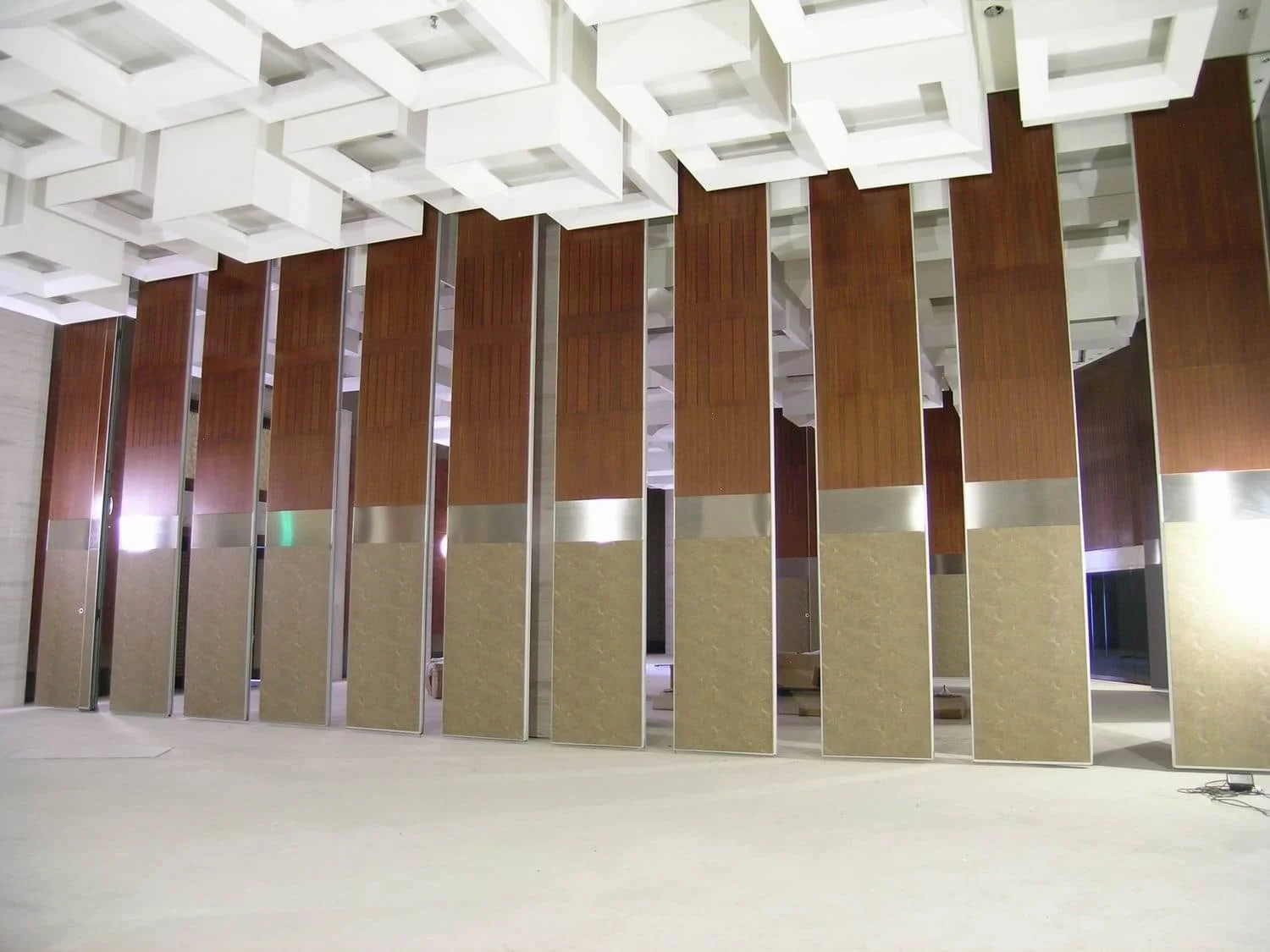

Premium Semi-Auto Operable Partition
The semi-automatic movable partition is an upgraded version of the manual type. The micro motors control the retractable seals directly, allowing for quicker operation of the partition. And without the mechanism inside can greatly reduce the weight of the partition, making it easier to maintain.
| Thickness (mm) | 100 | Operation | Manual |
| STC | 51~55dB | Maximum Height | 21m |
| Retractable Seal | Double Electric Motor | Sound Blanket | Fiber Glass |
| Inner Keel | Aluminum | Weight | 35kg/m² |
| Package | Wooden Box | Warranty | 5 Years |
PRODUCT DESCRIPTION
Prodec movable wall partition is made of a high-quality anodized aluminum frame with environmentally composite materials. The panels move on a ceiling track without any requirement of the rails or guides on the floor. The panel has a standard thickness of 50mm~125mm, and a width of up to 1219mm. The maximum height can reach 21.0m.
MODEL DESCRIPTION
Premium semi-auto partition is our most advanced version of operable partition wall, instead of using one single electrical motor in the middle of the panel, in this new version each top and bottom retractable seals will be controlled by its own individual micro motors, which will work immediately after two elements are contacted, not only greatly reduce the weight of the panels, but also easy for maintain those motors, and provide the possibility of having transparency on the panels.
The elements are suspended from the shock-absorbing bolt, this can greatly reduce the transmission of impact and operating noise, within the bolt there is safety rope, preventing flexure orfracture of the bolts
The micro E-Motors system serves to retract and extend the both top and bottom horizontal seals of the individual elements, and also the telescopic elements, as soon as the elements are pushed together.
This eliminates the time for operating the crank, also avoids the operator forgetting to wind up the seals the micro motors are easy to take out and repair compare to the traditional semi auto
Each element is provided top and bottom with extendable upgrade sealing chamber, they are powered by the electric motor, and when extended, press against the floor surface and ceiling track. The constant spring pressure allows for automatic adapatability to floor unevenness
Power is transmitted from element to element via the contact, to control the sealing, even when the power is failure, it can be operated manually
Upgrade version of convex/concave positive locking with deep profile interlocking, along with magnetic strip, easy to contact
Elastic corner pieces increase the stability and sound insulation
TRACK SYSTEM
ELEMENT OPTIONS
There are various types of elements combined a whole set of partition wall, suitable for almost any kinds of circumstances and setting. Not only the solid type but alos the glazing partition can do the same, even combining both glazing and solid together, to satisfy all kinds of unique design features and specification.
Full Wall Element
Telescopic Element
Pass Door with Element
Double Pass Door
Full-Height Pass Door
Corner 90° & T-Joint Element
Angled Element
Curved Element
Irregular Element
Glass Element
STACKING OPTIONS
There are various of stacked options based on the room situation, all the panels can form a compact package to save spaces, followings are the standard parking solutions, there are more other special possibility for stacking the panels as well.
Suitable for mono-direction, stacking the panels to one side, or distribute to both sides.
Suitable for multi-direction, panels can only be stacked to one side.
Suitable for multi-direction, panels can only be stacked to one side.
Suitable for multi-direction, where the storage room is away from the main track.
For more options please contact us for solution according to your project.
