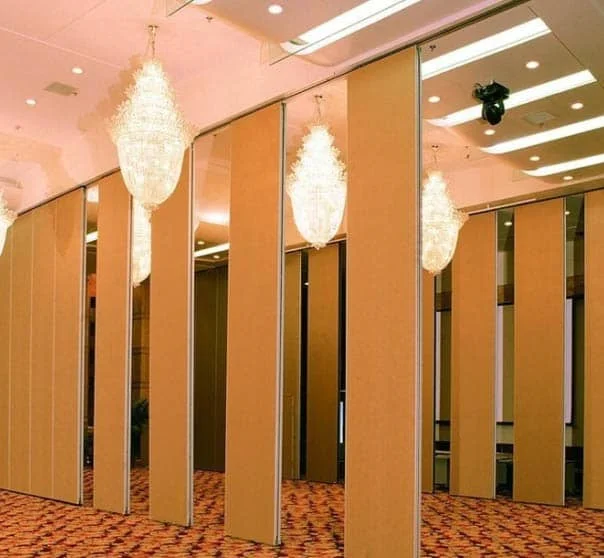

Premium Manual Operable Partition
Premium type movable partition wall is a flexible wall system designed to create adjustable spaces within a building, also provide an excellent soundproof performance, they provide a versatile solution for optimizing space usage while maintaining the aesthetics of the environment.
| Thickness (mm) | 85, 100 | Operation | Manual |
| STC | 45~55dB | Maximum Height | 21m |
| Retractable Seal | Manual | Sound Blanket | Fiber Glass |
| Inner Keel | Steel | Weight | 48kg/m22 |
| Package | Wooden Box | Warranty | 5 Years |
PRODUCT DESCRIPTION
Sunwood movable wall partition is made of a high-quality anodized aluminum frame with environmentally composite materials. The panels move on a ceiling track without any requirement of the rails or guides on the floor. The panel has a standard thickness of 50mm~125mm, and a width of up to 1219mm. The maximum height can reach 21.0m.
MODEL DESCRIPTION
Premium Type Operable Partition Wall Premium type operable partition is the upgrade version of the economic type, this premium product is suitable to those high-end projects which require higher quality standard, the upgrade version provide not only the quality, but also the advanced design and functions, compare to the economic version, it has more applications. The maximum height can reach up to 21m.
Upgrade version of retractable seal, the special casting mold ensure that the sealing strip will not come out easily, provide a better sound insulation performance.
Special design connection buffer, this buffer connects two components through an embedded system, ensure no sound is leaking from here.
Upgrade version of aluminum profile joint, special mold for the sealing strip ensure the high quality of sound insulation.
Apart from the rubber sealing strip, there is magnetic strips embedded inside the joint to make the contact more easy and tight.
The raw finish can be covered with all kinds of materials for decoration.
The insulation materials can be embedded inside according to different requirements.
Special design key, very easy to operate. The new type of jack mechanism instead of one-time trigger spring mechanism in the normal partition, providing a stable force to those retractable seal, increasing the sound insulation performance and durability.
Reinforced galvanized steel structure, supporting the full panel, panel will not bent even if it’s very high.
Patented design, no need any lubrication, more durable.
TRACK SYSTEM
ELEMENT OPTIONS
There are various types of elements combined a whole set of partition wall, suitable for almost any kinds of circumstances and setting. Not only the solid type but alos the glazing partition can do the same, even combining both glazing and solid together, to satisfy all kinds of unique design features and specification.
Full Wall Element
Telescopic Element
Pass Door with Element
Double Pass Door
Full-Height Pass Door
Corner 90° & T-Joint Element
Angled Element
Curved Element
Irregular Element
Glass Element
STACKING OPTIONS
There are various of stacked options based on the room situation, all the panels can form a compact package to save spaces, followings are the standard parking solutions, there are more other special possibility for stacking the panels as well.
Suitable for mono-direction, stacking the panels to one side, or distribute to both sides.
Suitable for multi-direction, panels can only be stacked to one side.
Suitable for multi-direction, panels can only be stacked to one side.
Suitable for multi-direction, where the storage room is away from the main track.
For more options please contact us for solution according to your project.
