Classic Semi-Auto Operable Partition – acoustic panel,soundproofing material,movable partition,acoustic solutions

Thickness (mm)	100	Operation	Manual
STC	51~55dB	Maximum Height	21m
Retractable Seal	Electric Motor	Sound Blanket	Fiber Glass
Inner Keel	Aluminum	Weight	48kg/m²
Package	Wooden Box	Warranty	5 Years

PRODUCT DESCRIPTION

Prodec movable wall partition is made of a high-quality anodized aluminum frame with environmentally composite materials. The panels move on a ceiling track without any requirement of the rails or guides on the floor. The panel has a standard thickness of 50mm~125mm, and a width of up to 1219mm. The maximum height can reach 21.0m.

MODEL DESCRIPTION

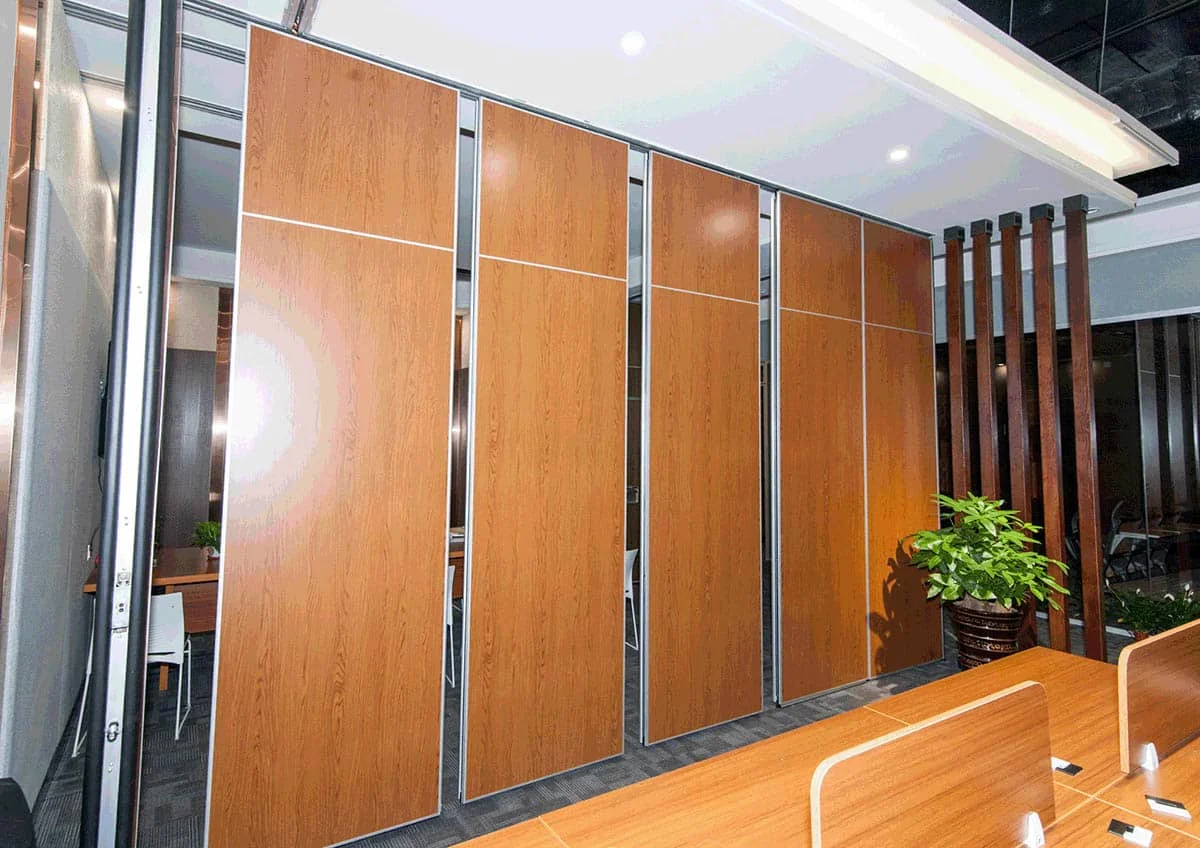

Classic Semi-Auto Operable Partition Wall

Semi-Auto type is the upgrade version from the manual type, with this system requires even less effort to operate the partition, the advantage of this system compare to the manual type is that it can greatly reduce the time for manually operate the retractable sealing strips, instead they will be controlled by the electric motor, saving a lot of time and effort.

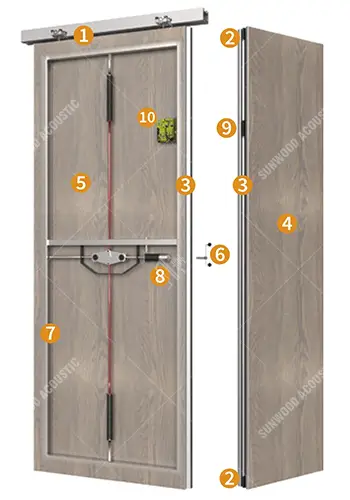

1. Horizontal Seals
Excellent pressure from the upgrade sealing chamber, increase sound insulation and stability and even out floor irregularities.

2. Corner Seals
Elastic corner pieces increase the stability and sound insulation.

3. Element Connections
Upgrade version of convex/concave positive locking with deep profile interlocking, along with magnetic strip, easy to contact.

4. Cover Panels
Panel is clipped on the frame, can be replace without removing the elements, providing an excellent sound insulation.

5. Sound Insulation Material
Panel can be fitted with additional insulation material according to the requirements.

6. Operating Key
Crank handle for manually extending and retracting the sealing strips.

7. Frame
Reinforced steel structure and upgrade version aluminum construction with outstanding strength and sound insulation.

8. Electric Motor
The electric motor control the extension and retractable seal, can be operated manually.

9. Contacts
Power is transmitted from element to element via the contact, it eliminates the time for operating the crank, also avoids the operator forgetting to wind up the seals.

TRACK SYSTEM

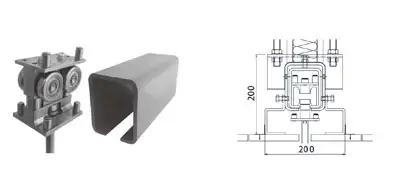

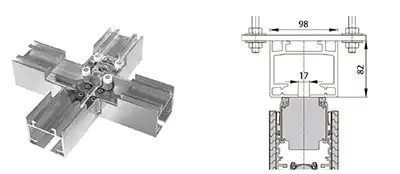

SW600 Track System

Track system for right-angled configurations with cross-roller carries for element weight up to 500kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections

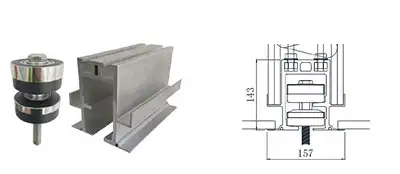

SW700 Track System

Casting aluminum trackc system for right-angled configurations with horizontal rollers for easy maneuverability of intermediate height panels

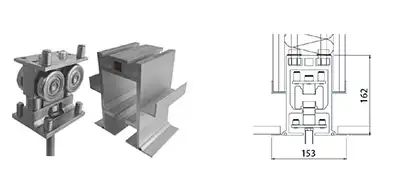

SW1000 Track System

Casting aluminum track system for ultra-height panels with mechanically guided heavy duty steel bearing roller plus curves and switches for maximum ease of operation

SW2000 Track System

Complete steel track system for ultra-height panels with mechanically guided heavy duty steel bearing rollers plus curves and switches for maximum ease of operation

ELEMENT OPTIONS

There are various types of elements combined a whole set of partition wall, suitable for almost any kinds of circumstances and setting. Not only the solid type but alos the glazing partition can do the same, even combining both glazing and solid together, to satisfy all kinds of unique design features and specification.

Full Wall Element

Telescopic Element

Pass Door with Element

Double Pass Door

Full-Height Pass Door

Corner 90° & T-Joint Element

Angled Element

Curved Element

Irregular Element

Glass Element

STACKING OPTIONS

There are various of stacked options based on the room situation, all the panels can form a compact package to save spaces, followings are the standard parking solutions, there are more other special possibility for stacking the panels as well.

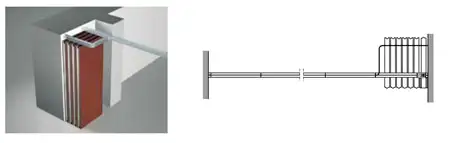

Suitable for mono-direction, stacking the panels to one side, or distribute to both sides.

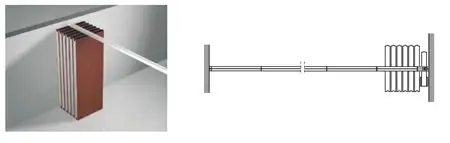

Suitable for multi-direction, panels can only be stacked to one side.

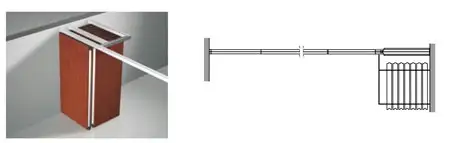

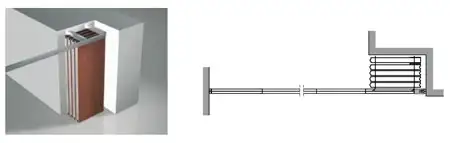

Suitable for multi-direction, where the storage room is away from the main track.

For more options please contact us for solution according to your project.

PACKING & DELIVERY

FAQ

Q1: What about the leading time?

Sample needs about 3-5 days, small quantity need about 7 days, big quantity needs about 10-20 days for order quantity more than 300 square meter, premium type and semi-auto type need about 25 days.

Q2: Do you have any MOQ limit for partition door order?

We produce based on the order, no MOQ required.

Q3: Do you provide installation?

We can provide engineers to the site for guidance, client will need to cover all the cost during the installation period for the engineers.

Q4: Do you offer guarantee for the products?

Yes, we offer 2 years warranty to the classic type and 5 years warranty to the premium type.

Q5: Sample policy.

Client should bear the cost of the sample and the freight, the cost can be deducted from the order.

Q6: How is the soundproof quality?

From 30dB to 55dB, depends on the specific requirements from your project, classic version mainly serve as room divider, sound proof performance is weaker than premium type.
